High Torque Brushless Dc Motor
video
High Torque Brushless Dc Motor

High Torque Brushless Dc Motor

$1300.00 | 1 piece(Min.Order)

1、 Product features Main features of high speed brushless dc motor: 1. Compact structure: compact stator and rotor structure, built-in encoder and driver; 2. Fast response: small moment of inertia, fast dynamic response; 3. Precise control: low torque ripple, easy to speed control and precise...
Send Inquiry
Add To Cart
Product Details ofHigh Torque Brushless Dc Motor





1、 Product features

Main features of high speed brushless dc motor:

1. Compact structure: compact stator and rotor structure, built-in encoder and driver;

2. Fast response: small moment of inertia, fast dynamic response;

3. Precise control: low torque ripple, easy to speed control and precise positioning;

4. Small and precise: the outer diameter is only 115mm, the large and medium-sized empty wire holes, ultra light weight, effectively ensuring the reasonable self weight ratio of the robot;

5. Ready to use: it can be directly connected with the high speed brushless dc motor and the driving mechanical arm.

high speed brushless dc motor 1

2、Application scenario

The high speed brushless dc motor can provide multiple degrees of freedom for various machines. For example, bionic robot, cooperative robot, welding robot, exoskeleton robot and other fields meet the needs of different industries, such as industry, scientific research, commerce, medical treatment, etc., with wide application, stable quality and large shipment.

3、  Parameter table

Serial number

Model

 JA110

1

External diameter    mm

115

2

Length     mm

49

3

Weight   g

1900

4

Reduction ratio

37.1

5

Peak torque  Nm

150

6

Continuous output torque  Nm

70

7

Motor power   W

280

8

Rated current  A

7.9

9

Power supply voltage   VDC

36

10

Rated speed   rpm

28.3

11

Maximum speed   rpm

36.3

12

Polar logarithm

21

13

Encoder form

Mutual inductance encoder 4501

14

Repeated positioning accuracy

Less than 4 minutes of arc

15

Absolute positioning accuracy

±0.02°

16

Resolving power

8768

17

Braker form

Software braking

18

interface design

Integrate

The above parameters are for reference only. Our product technology is constantly updated and upgraded. At the same time, we also accept the customization and development of customers.



4、Product details

product-1-1

product-1-1

product-1-1

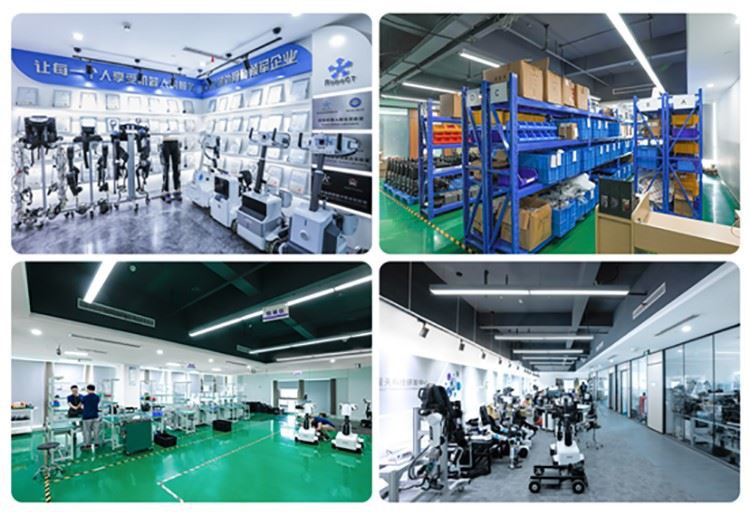

5、Factory and qualification



product-1-1

product-1-1

product-1-1

product-1-1



7、 After sales service

1. Our company can provide installation, debugging and technical training for all our products.

2. After the installation and commissioning, the warranty period is one year (except for vulnerable parts and artificial damage), with a lifetime warranty.

3. Irregular on-site maintenance, on-site operation and technical training.

4. After sales contact: 0571-89167832.

5. Service content: in case of equipment failure, first communicate by phone. If the problem cannot be solved, our company will rush to the site as soon as possible to solve the problem. After sales service includes not only equipment maintenance, but also technical support. Our technicians can carry out on-site technical training and provide a complete set of solutions. Professional and technical personnel shall follow up the use of user's equipment at any time.
